- LOW PRESSURE FLOW RATE 10 LITRES/MIN UP TO 70 BAR
- HIGH PRESSURE FLOW RATE 1.3 LITRES/MIN UP TO 700 BAR
- WORKING PRESSURE 700 BAR

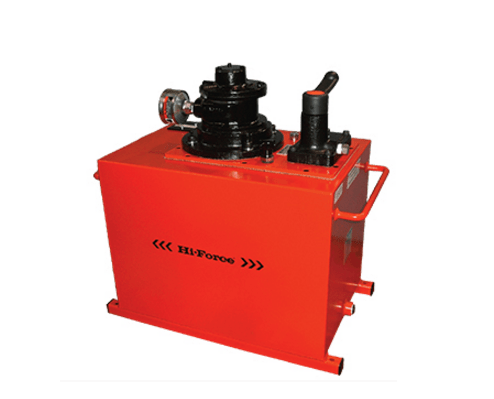

The HAP two stage air powered hydraulic pump range offers a low pressure flow of 10 litres/min with automatic changeover to 700 Bar high pressure flow rate of 1.3 litres/min. Driven by a powerful 3 kW rotary air motor with a maximum air consumption of 2.4m3 per minute at 7 Bar inlet air pressure, the HAP range offers a choice of pump mounted or remote control valves and oil reservoirs all fitted with filler and drain plugs. A full range of system components suitable for use with HAP pump units are available.
- Two stage hydraulic pump unit
- Powerful air motor
- Externally adjustable pressure relief valve
- Choice of control valves
- Manual valve with load holding feature fitted as standard

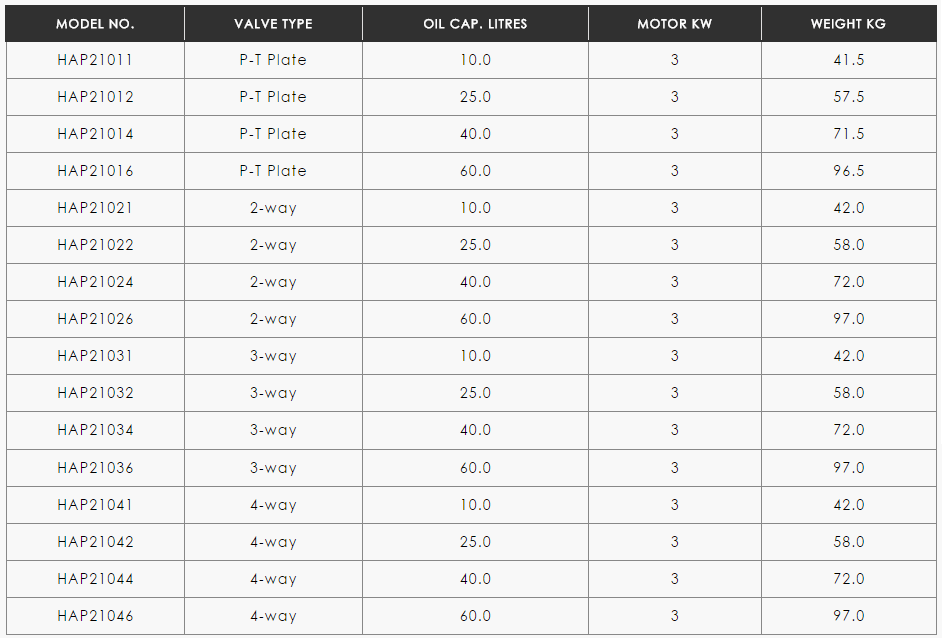

SPECIFICATIONS

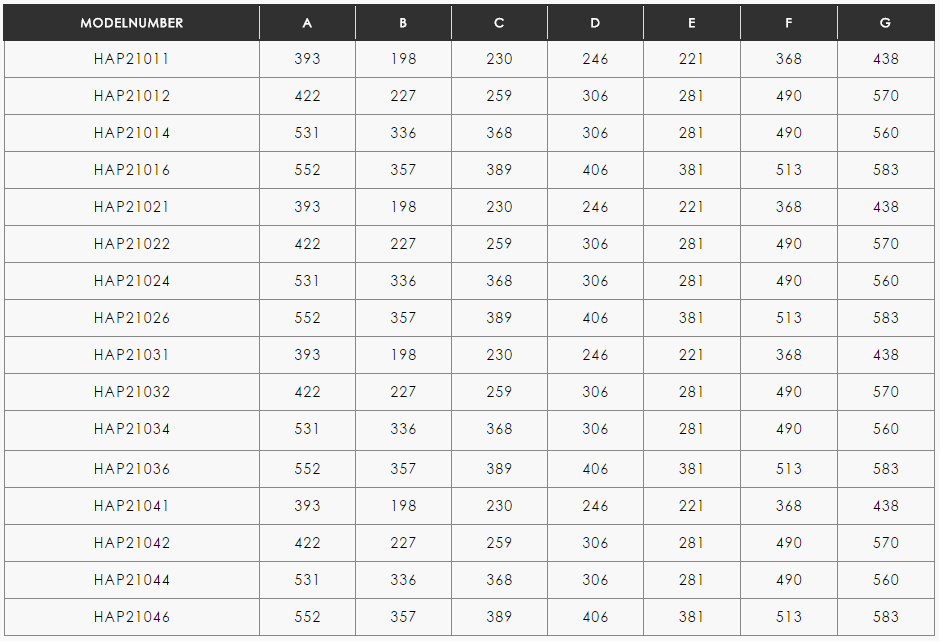

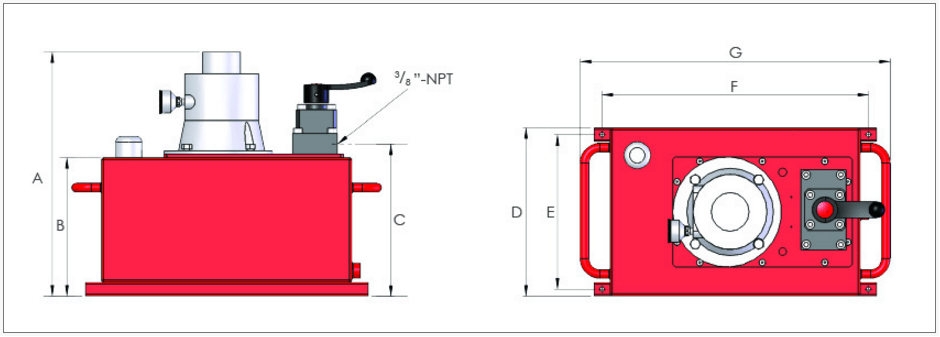

DIMENSIONS IN MM
